Axial 1/10 Capra 1.9 Unlimited Trail Buggy 4WD RTR, Red # AXI03000BT1

 Needed to Complete

 - Vehicle Battery and charger

 What's in the Box?

 (1) Axial® CapraT 1.9 Unlimited Trail Buggy 4WD RTR with:
 (1) SpektrumT STX3 2.4GHz 3-Channel Radio System
 (1) Dynamite® AE-5L Brushed ESC
 (1) 540-Size 35T Brushed Motor
 (1) Product Manual

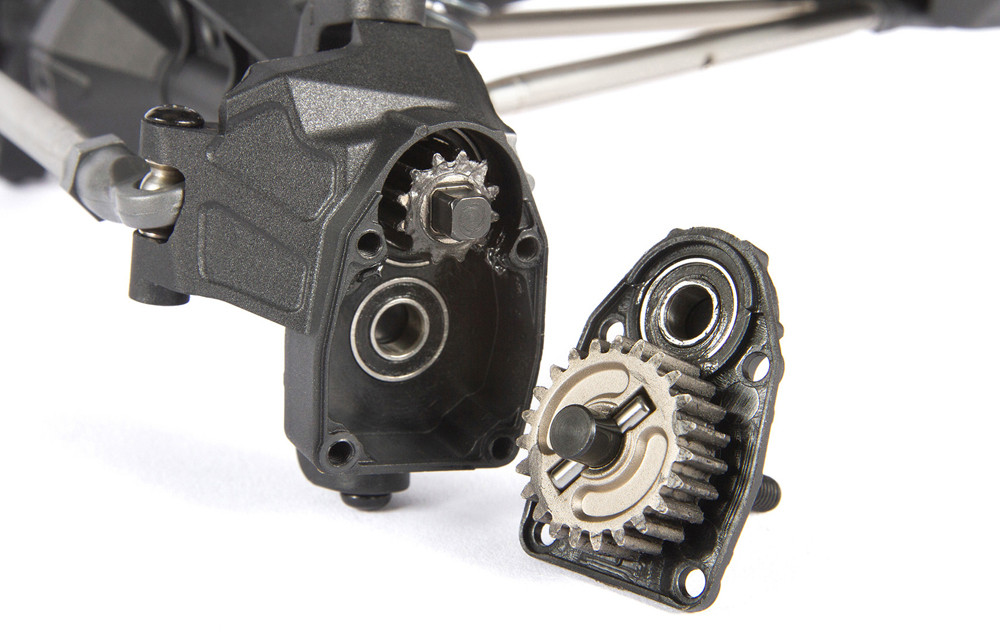

CURRIE F9 PORTAL AXLES

The Currie F9 Portal Axles add substantially more ground clearance at the diff pumpkin while also providing an excellent 7.39:1 gear ratio.

Completely ball bearing driven, and metal gears throughout for durability.

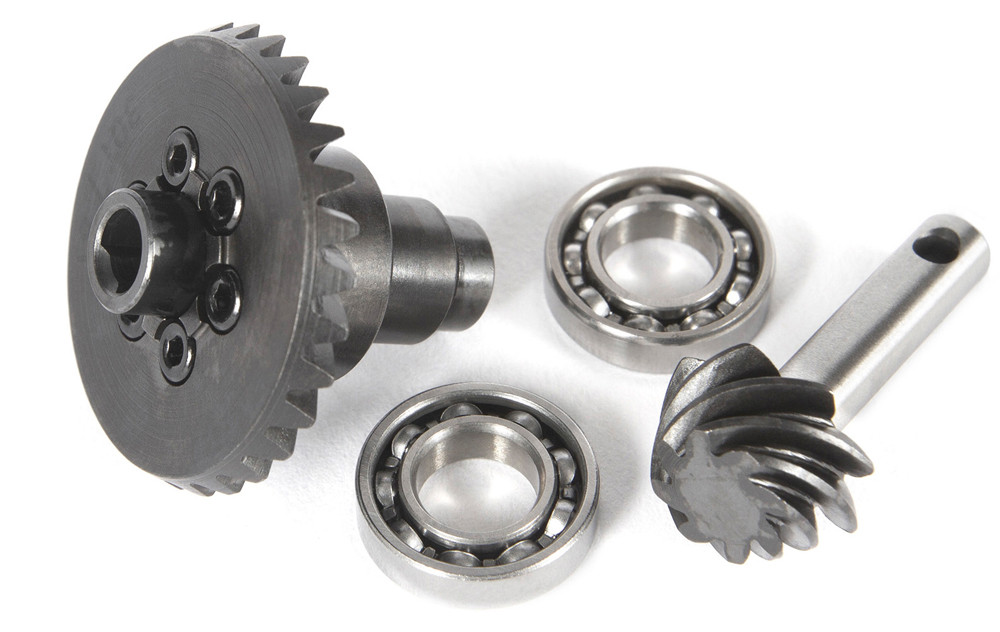

HI-PINION GEARS

The ring and pinion gears are machined steel, including the locker.

The design utilizes a six bolt design for durability.

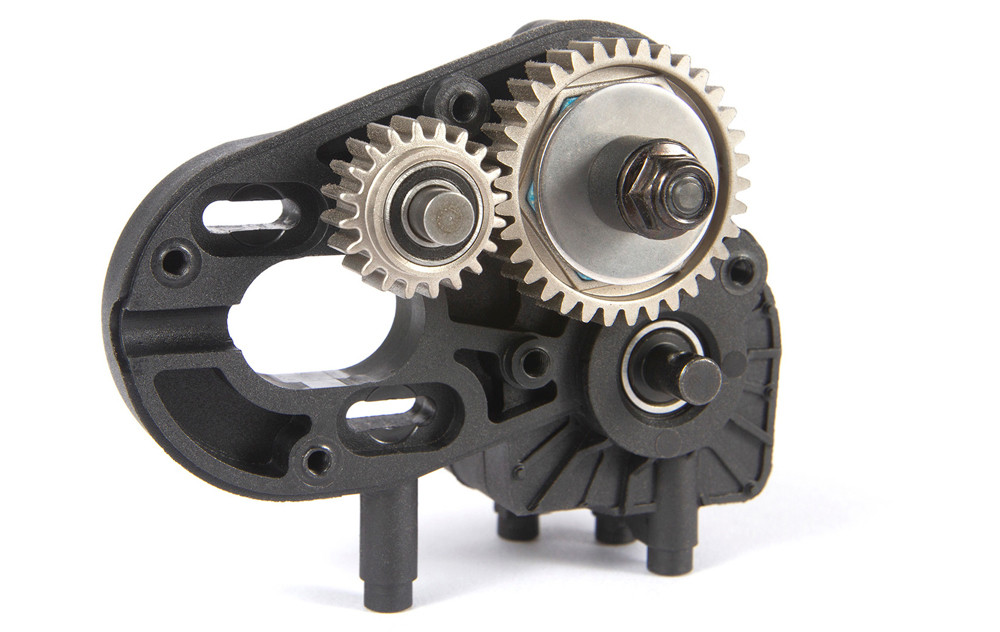

DIG TRANSMISSION

The ground up designed transmission features a "Dig" function. With the new STX3 transmitter, the user can "switch" between 4WD and locking the rear axle while powering with front drive only, allowing for tighter turning radius on the rocks.

The transmission also includes a full set of ball bearings and all metal internal gears for strength and durability. Micro Dig Servo SPMSSX107 included!

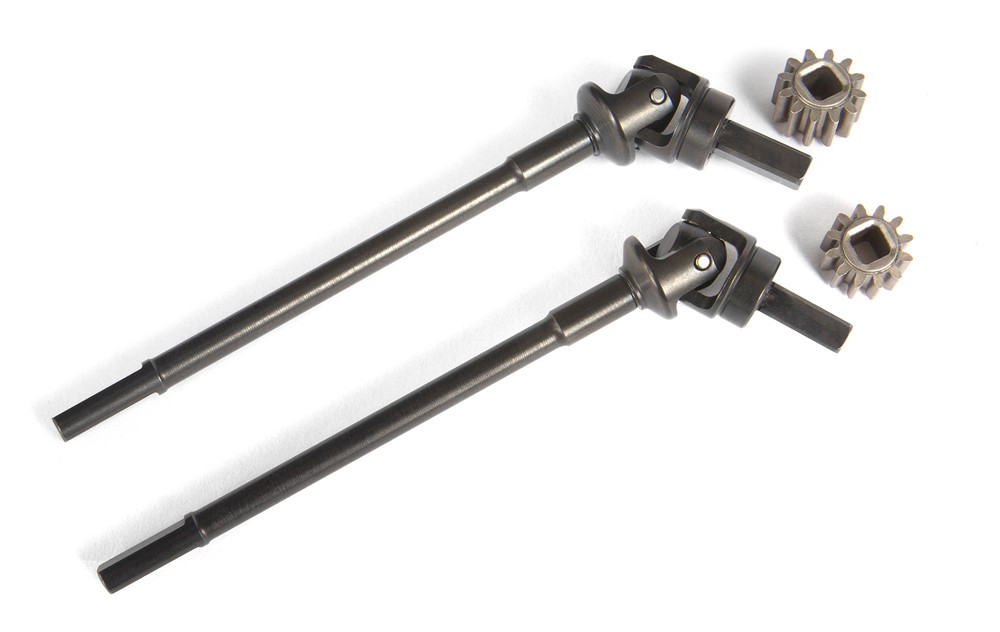

UNIVERSAL AXLE SET

Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.

 - Up to 45 degrees of steering
 - Smooth action for an efficient drivetrain
 - Compact yet durable design
 - Hardened steel construction

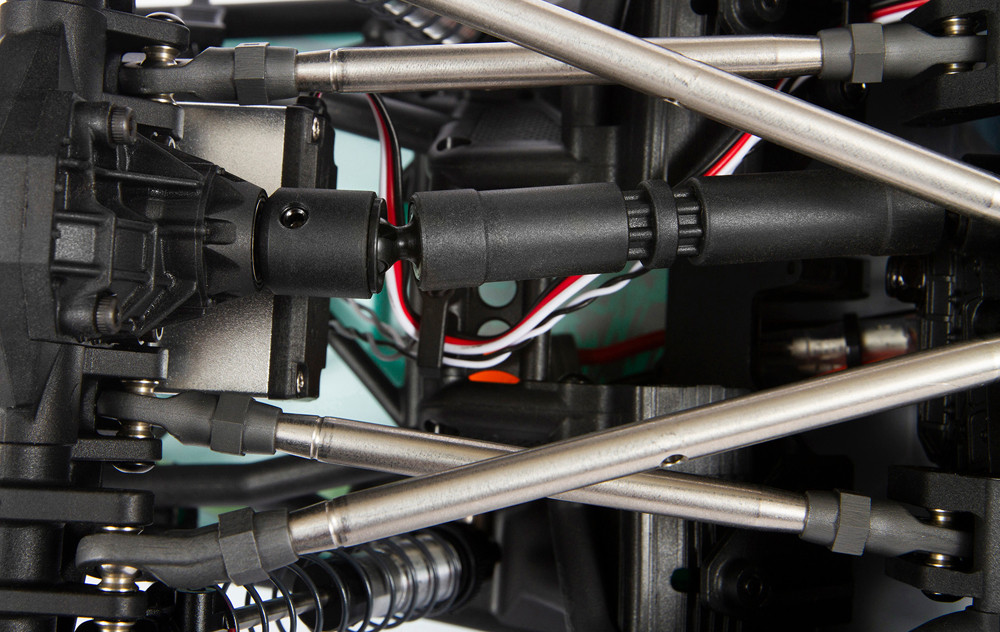

WB8 HD WILDBOART DRIVESHAFTS

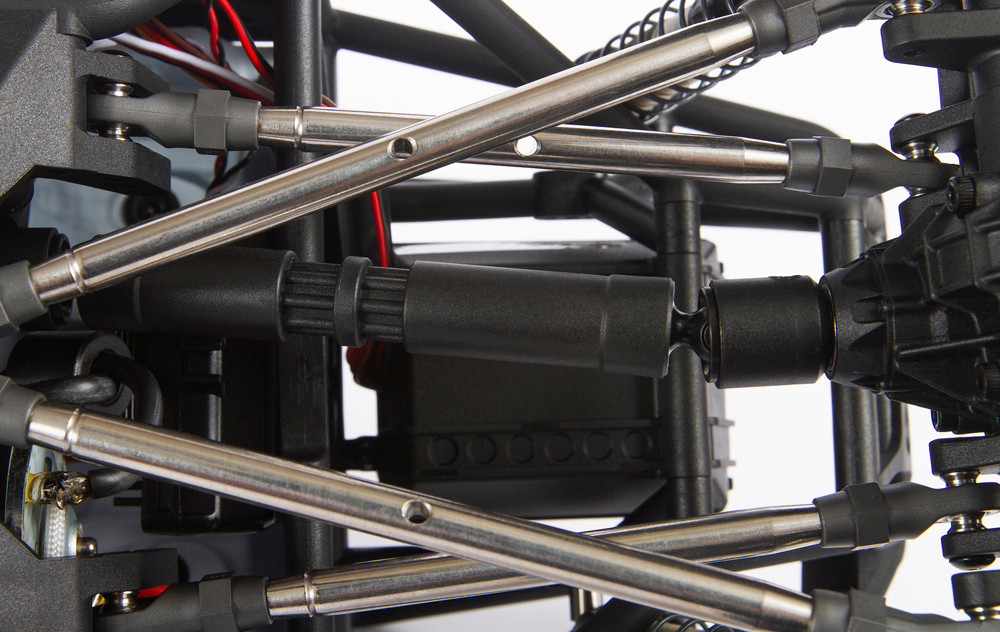

WB8 HD WildboarT front and rear driveshafts feature a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for greater strength.

A center splined slider floats between each end and has added material to reduce flex and fatigue.

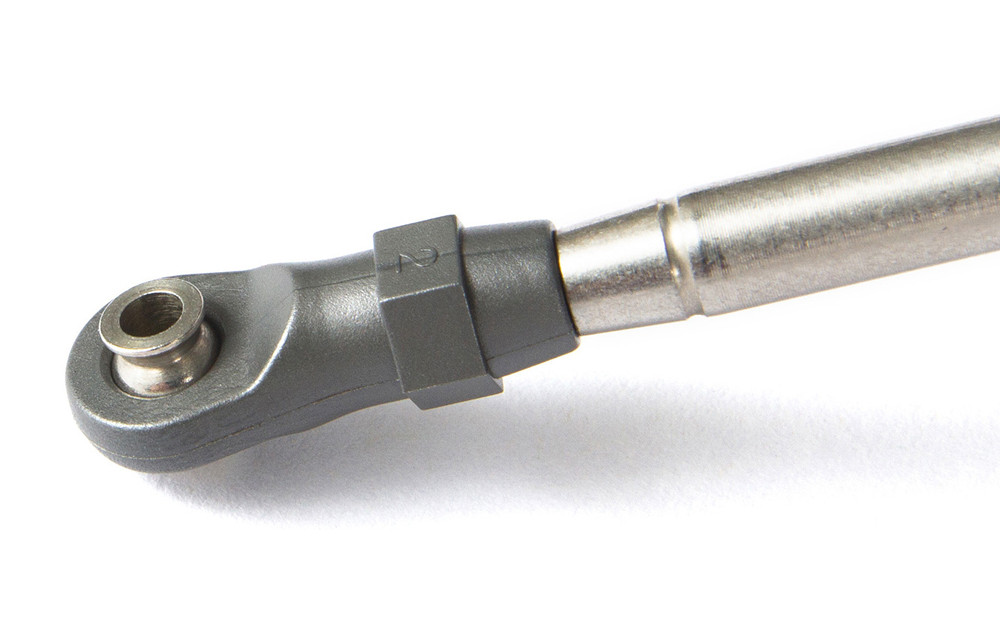

6MM STAINLESS STEEL LINKS

Strong 6mm stainless steel links with high grade plastic rod ends for durability.

All links are metal including the steering.

STAINLESS STEEL PIVOT BALLS

All pivot points are on stainless steel balls that provide a durable, long-lasting suspension point.

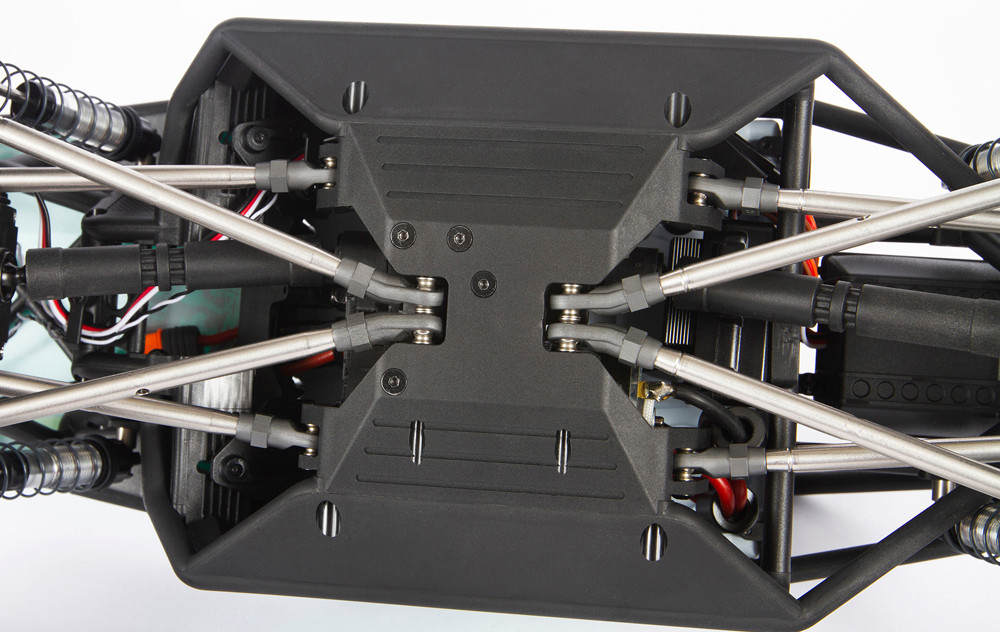

SKIDPLATE WITH BOAT SIDES

The Capra features a small skidplate footprint with boat sides to help maneuver and slide over rough, challenging obstacles.

STAINLESS STEEL STEERING LINKS

The steering links are also made from 6mm stainless steel, offering precise steering and durability.

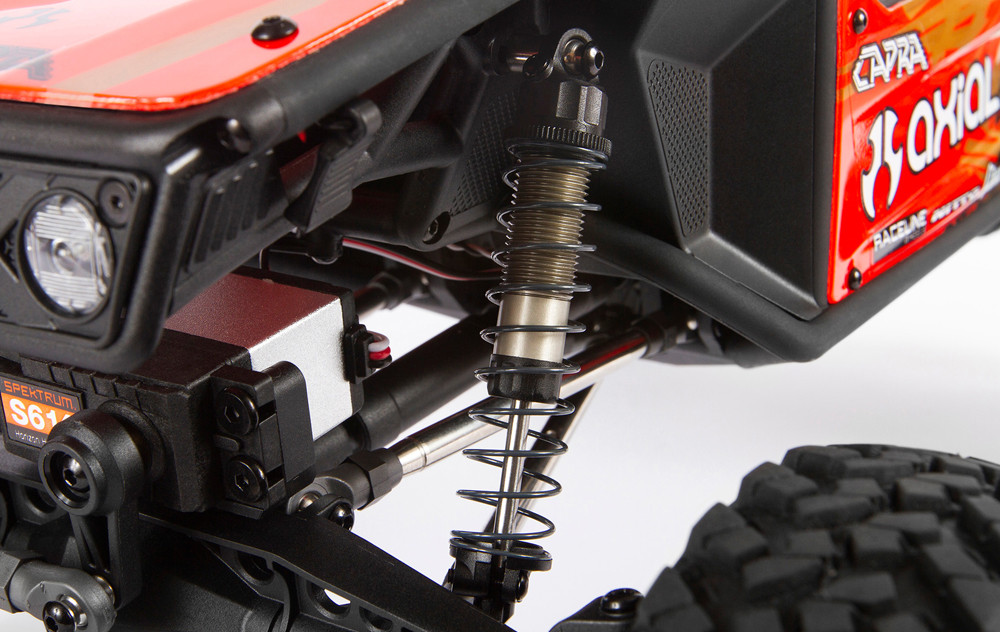

LARGE BORE ALUMINIUM SHOCKS

The oil-filled shocks are an all-new design with hard anodized, threaded shock bodies and a single coilover spring.

Their increased bore size creates more fluid volume for better performance. A bleed screw helps to bleed air from the shock during assembly for greater consistency.

The shocks are also tunable so you can achieve the best dampening rate.

Springs included:AXI233006 Spring 13x70mm 1.72lbs/in Red (2) Soft
AXI233008 Spring 13x70mm 2.4lbs/in Green (2) Firm

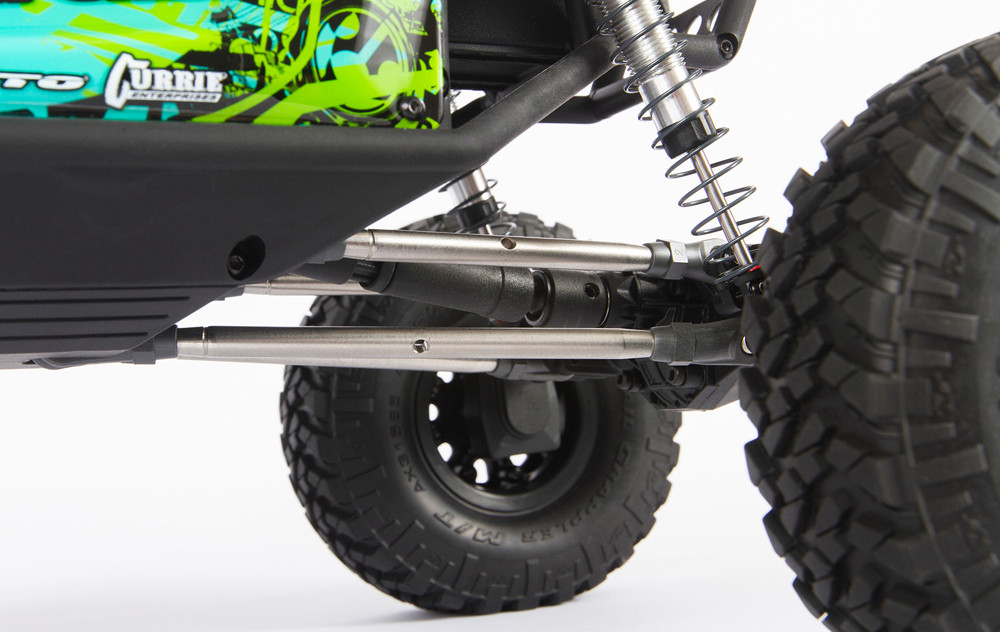

4-LINK SUSPENSION

Fine-tuned suspension geometry with multiple mounting locations for the upper link mounts to provide the best crawling capabilities.

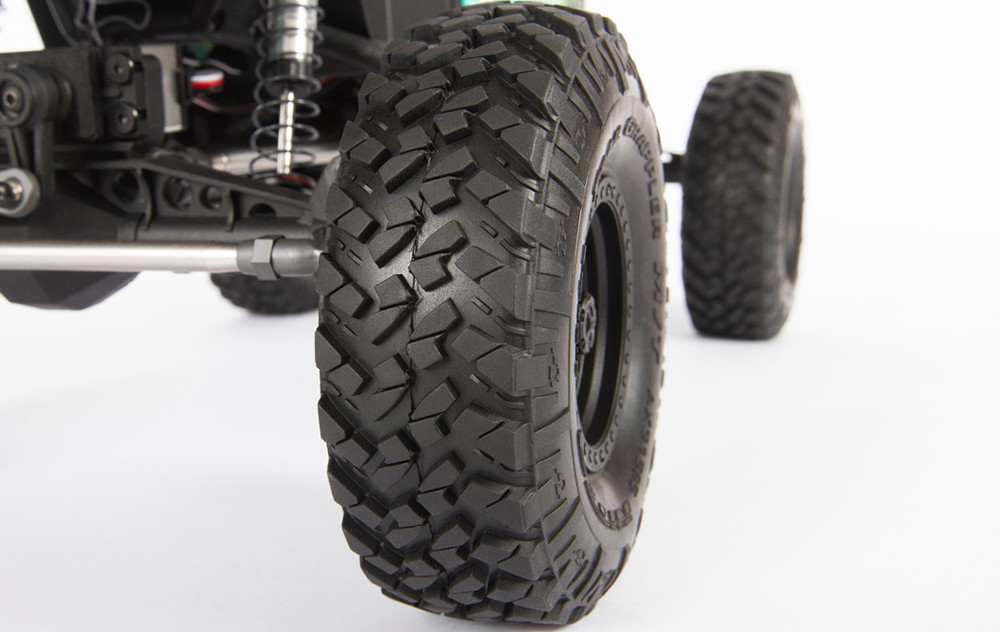

NITTO TRAIL GRAPPLER TYRES

Get a secure grip on dirt, rocks, and all other off-road trails from the S30 compound Nitto Trail Grappler 1.9 tyres.

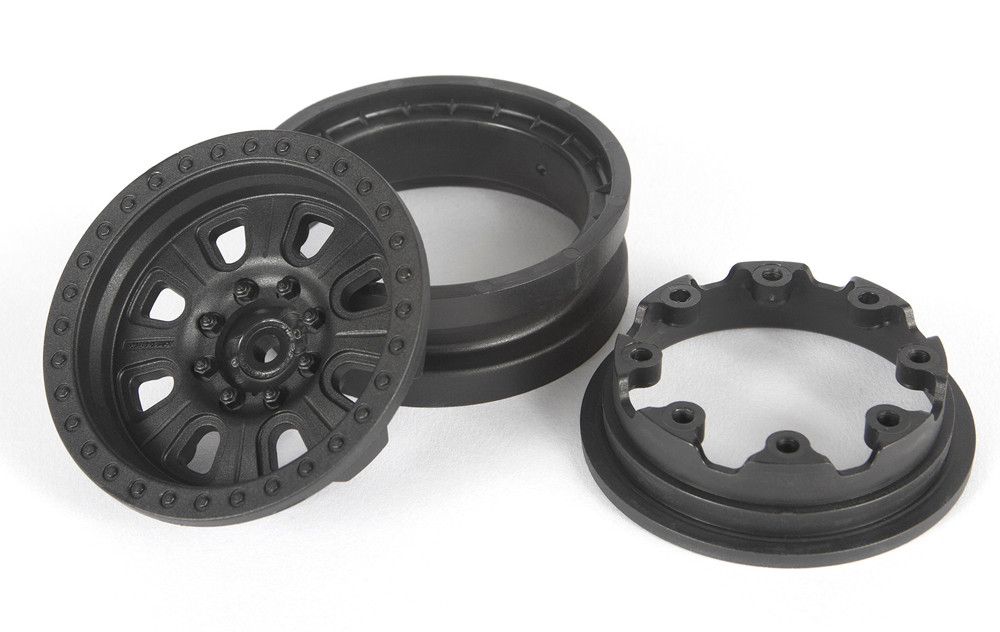

3-PIECE BEADLOCK WHEELS

For striking scale looks and serious trail performance, Axial® has outfitted the CapraT with 3-piece licensed Raceline beadlock wheels.

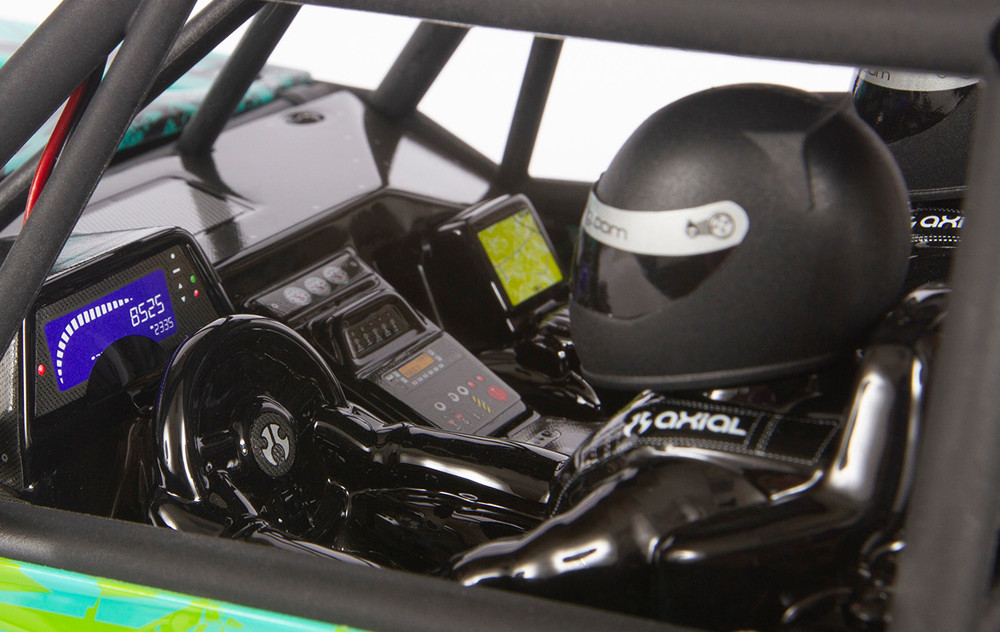

REALISTIC INTERIOR

Realistic scale details include: polycarbonate interior tray with moulded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more!

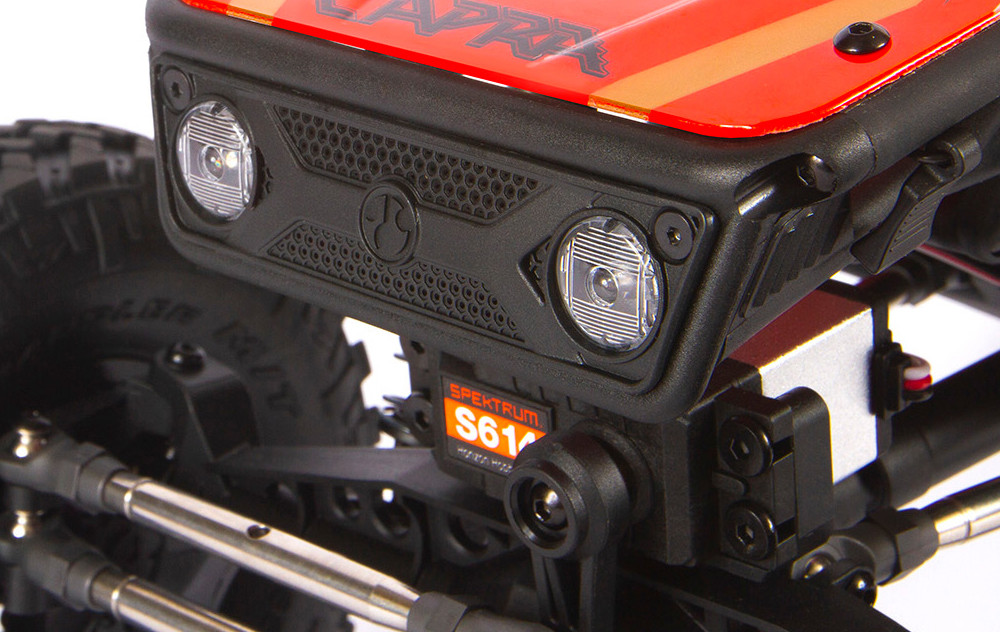

GRILLE AND HEADLIGHT BUCKETS

The moulded plastic front grille features two clear plastic headlight lenses with light buckets and a white LED light installed in each.

Behind the grille, under the hood, are two hood mounts with clips. Remove the clips to raise the hood up and gain access to the battery tray.

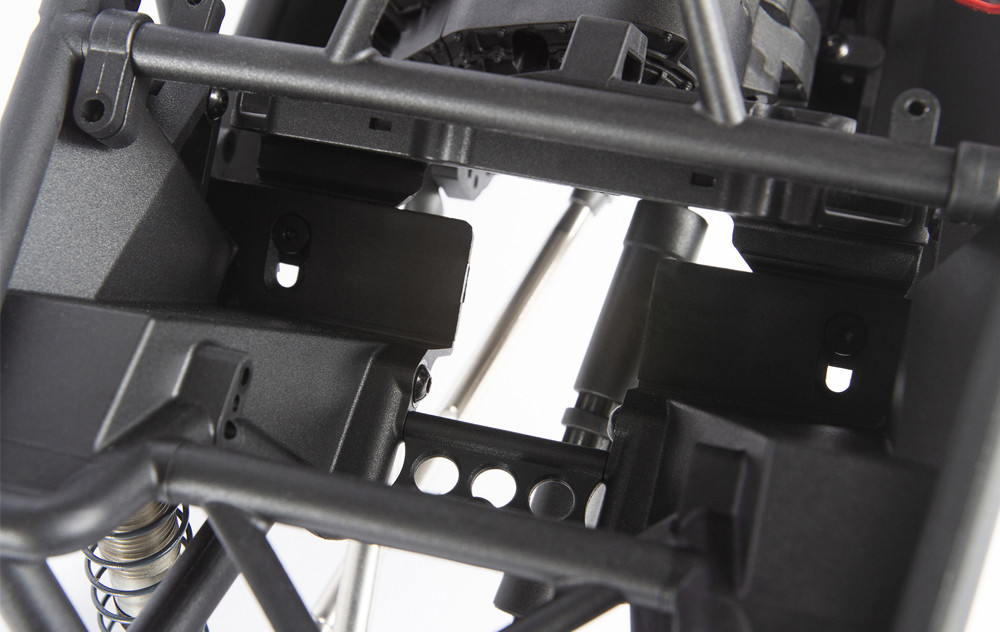

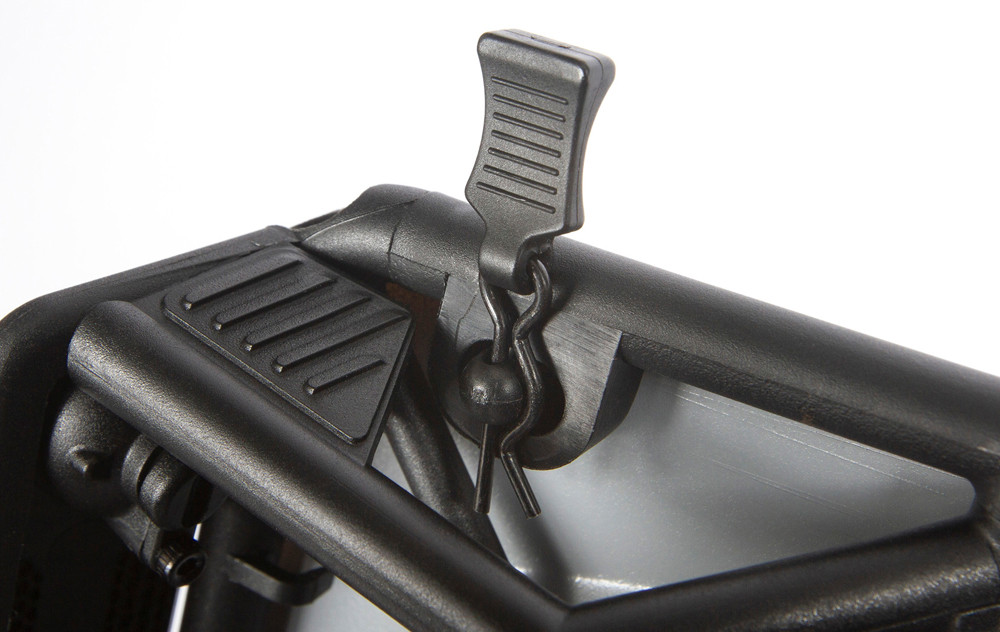

HOOD RELEASE

Remove the clips hidden on the underside of the tube frame to raise the hood up and gain access to the battery tray.

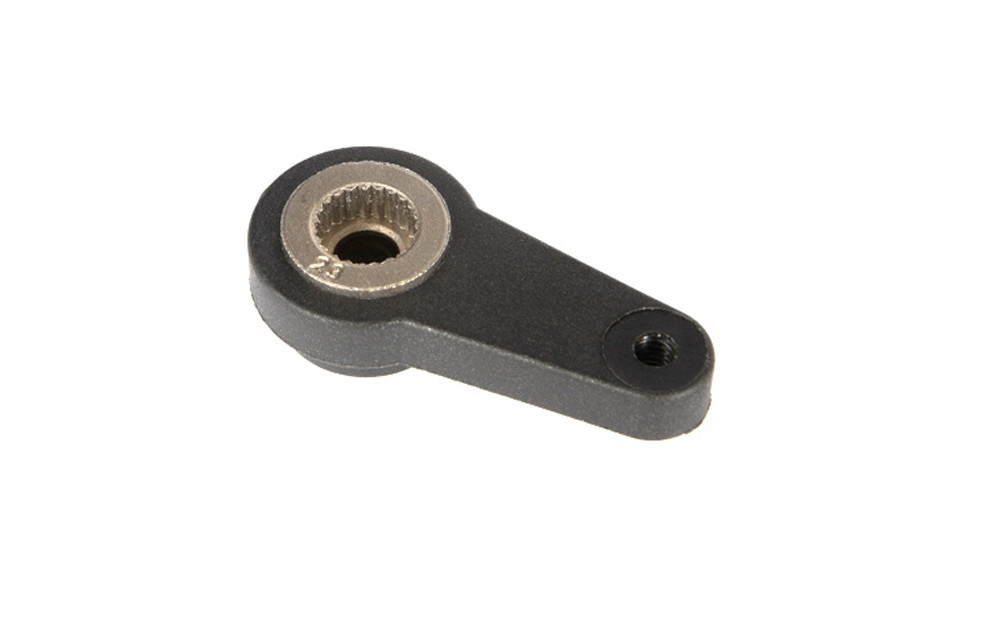

SERVO HORN WITH METAL INSERT

The servo horn features a 23T press fit metal insert for durability.

BATTERY TRAY

The battery tray is forward mounted, and located under the hood.

The tray size is built for shorty packs, at a maximum size of 26mm x 98mm x 47mm.

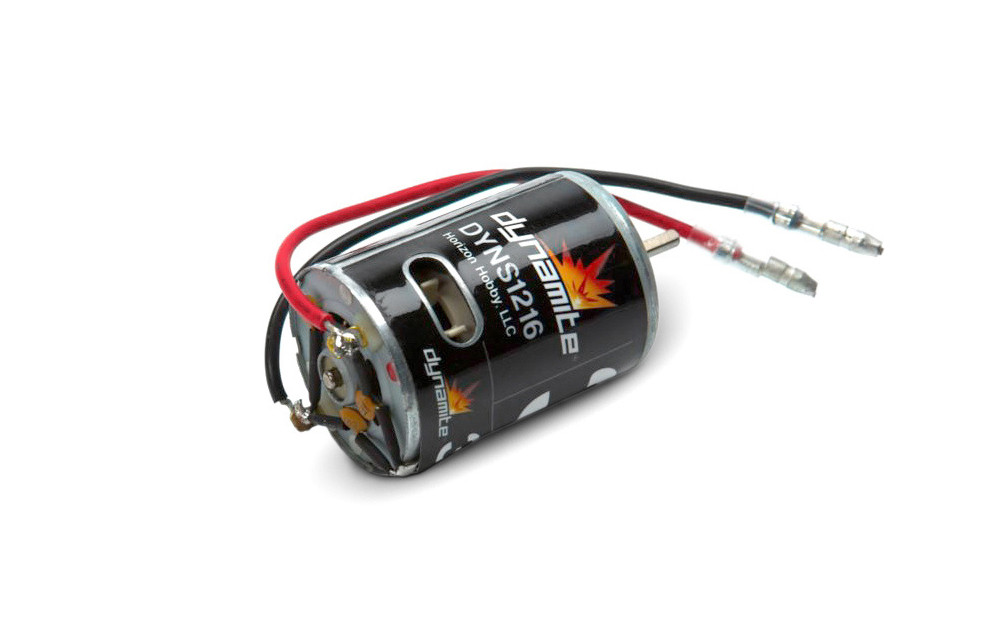

35T BRUSHED MOTOR

Delivering an even balance of speed and technical crawling, the included 540 size, 35T motor features a hassle-free design with enlarged cooling ports for extended periods of use.

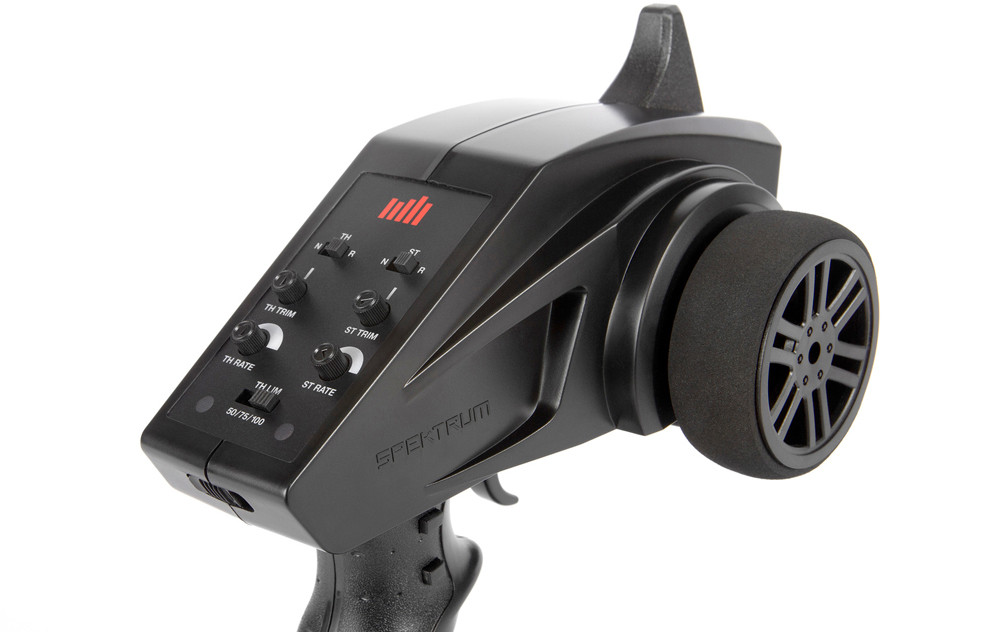

SPEKTRUMT STX3T 2.4GHz RADIO SYSTEM
The STX3T 3-channel radio system offers many features of higher-end 2.4GHz radio systems like throttle/steering reversing, throttle/steering travel adjust & throttle limiting, as well as third channel button controls for dig operation.

 - Thumb controls allow operation of the dig feature
 - Built-in 3-position throttle limited
 - Steering & throttle rate & trim adjustments with throttle and steering reversing
 - FHSS 2.4GHz protocol offers extended range and interference free performance

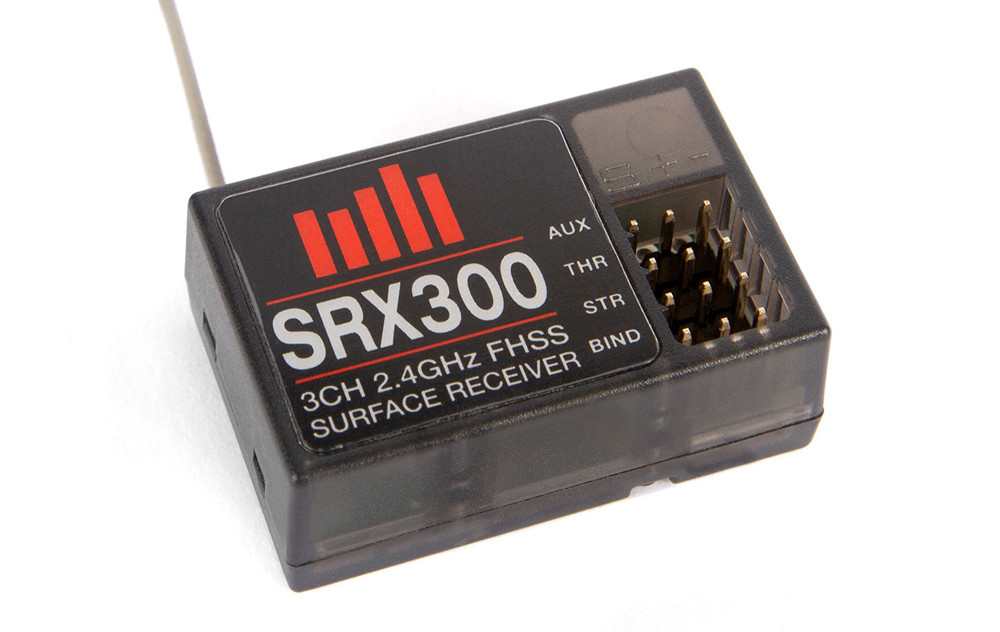

SPEKTRUMT SRX300 RECEIVER, WATER-RESISTANT

The SRX300 is a 3 channel 2.4GHz receiver that operates on the FHSS modulation.

It is conformal coated to help prevent damage from water, dust and other elements.

Features an extra-long antenna lead for easy and effective antenna placement.

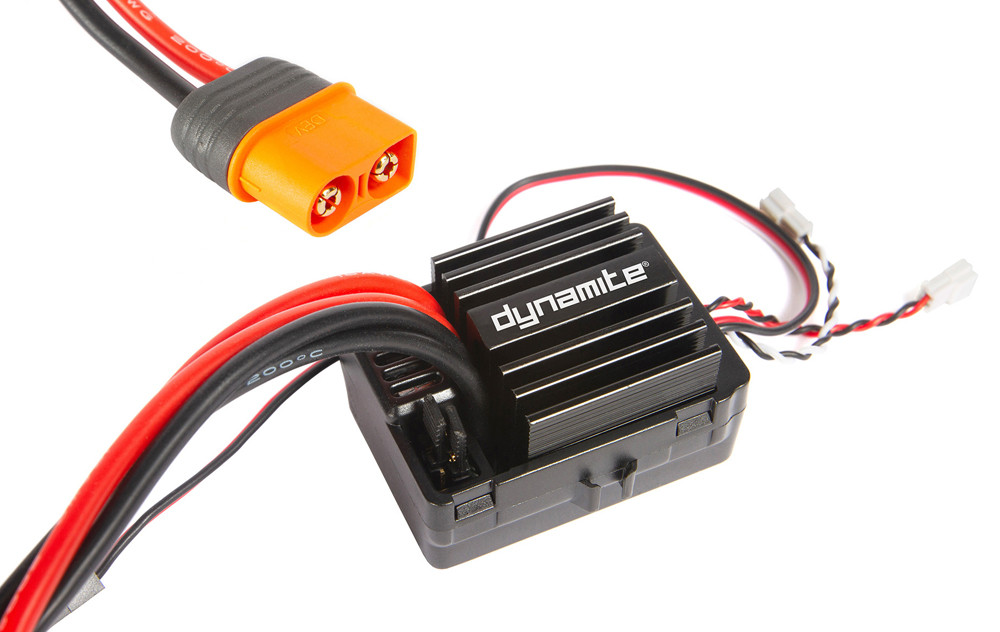

DYNAMITE® AE-5L ESC W/ DRAG BRAKE, WATERPROOF

The Dynamite AE-5L ESC is 3S LiPo capable yet easily switched "in the field" between LiPo and NiMH battery types with a simple jumper - no more complex procedures.

 - LED light bar and two front mounted LED lights included
 - Convenient IC3T plug lead
 - Jumper 1 provides a simple plug and play choice between LiPo or NiMH
 - Jumper 2 switches Drag Brake settings
 - Waterproof design with IC3T plug / laser etched heat sink NOTE: Requires shorty battery   pack with IC3T connector.

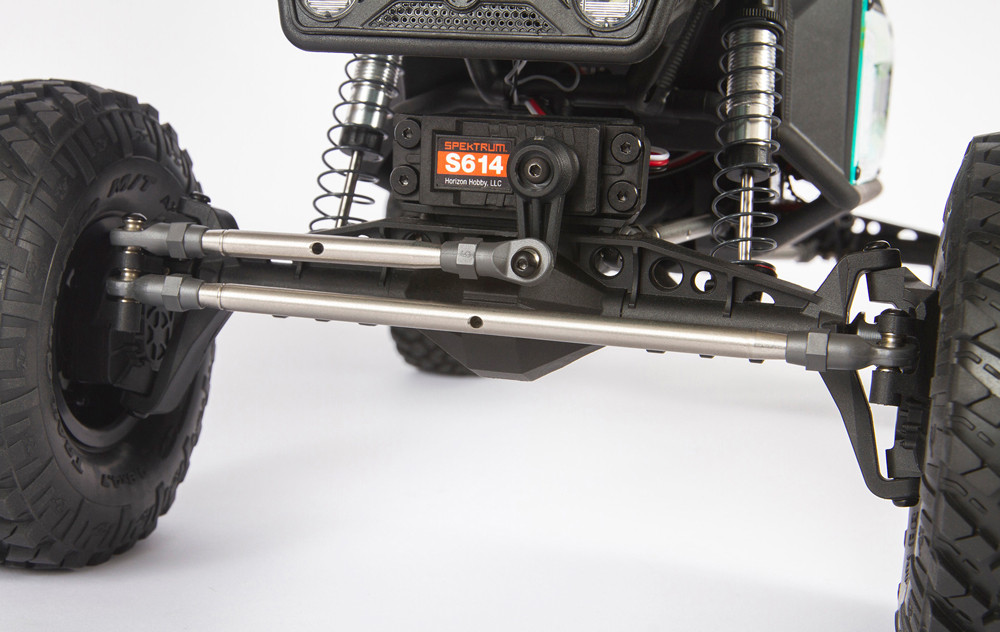

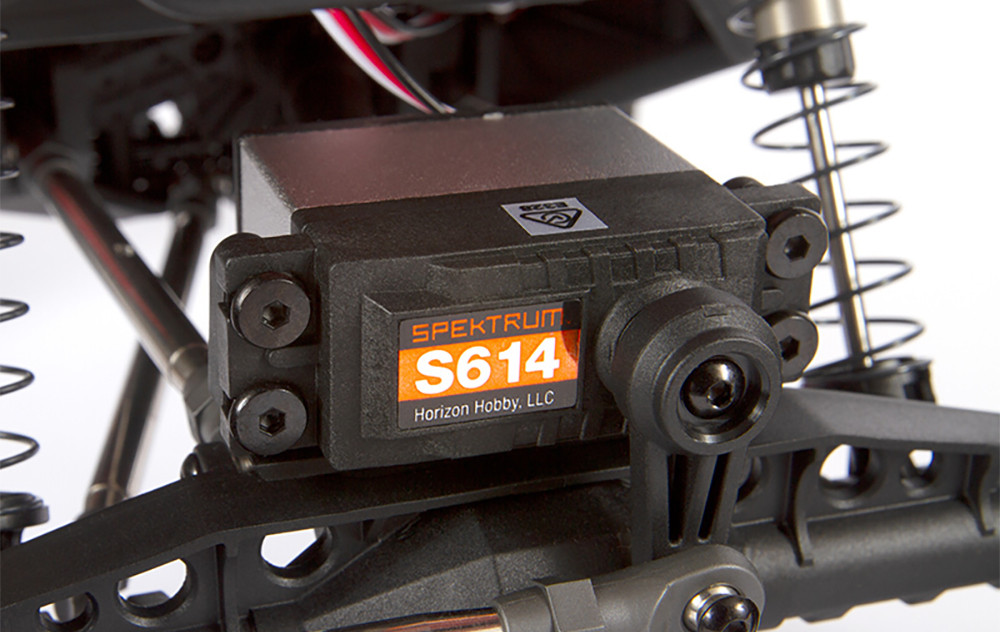

SPEKTRUMT S614 SERVO, WATERPROOF

The Spektrum S614 metal geared servo offers 201 oz-in of steering torque, a metal case for strength, and it's waterproof for extra protection against the elements.

The axle-mounted servo allows better steering control in full articulation.

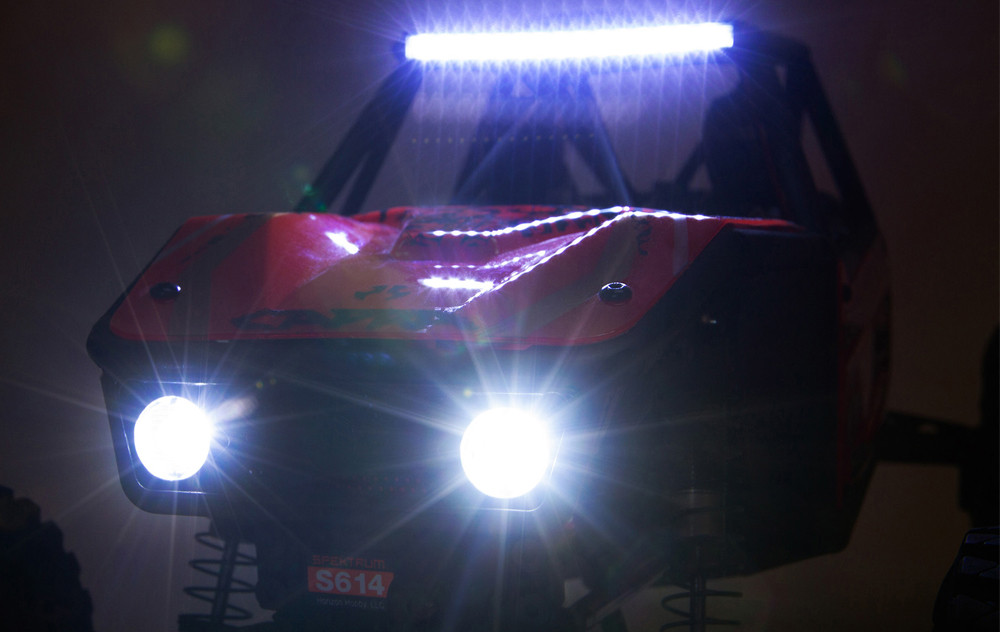

LED LIGHT BAR

A roof mounted LED light bar helps light the way on those late night crawls with your friends.

LED Light bar and two front mounted LED lights are included.
