HPI Racing 1/10 RS4 Sport 3 2015 Ford Mustang Spec-5 # 115126

RS4 Sport 3 featuring the 2015 Ford Mustang with RTR Spec 5 tuning

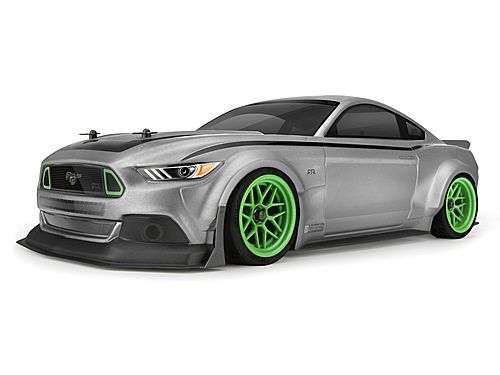

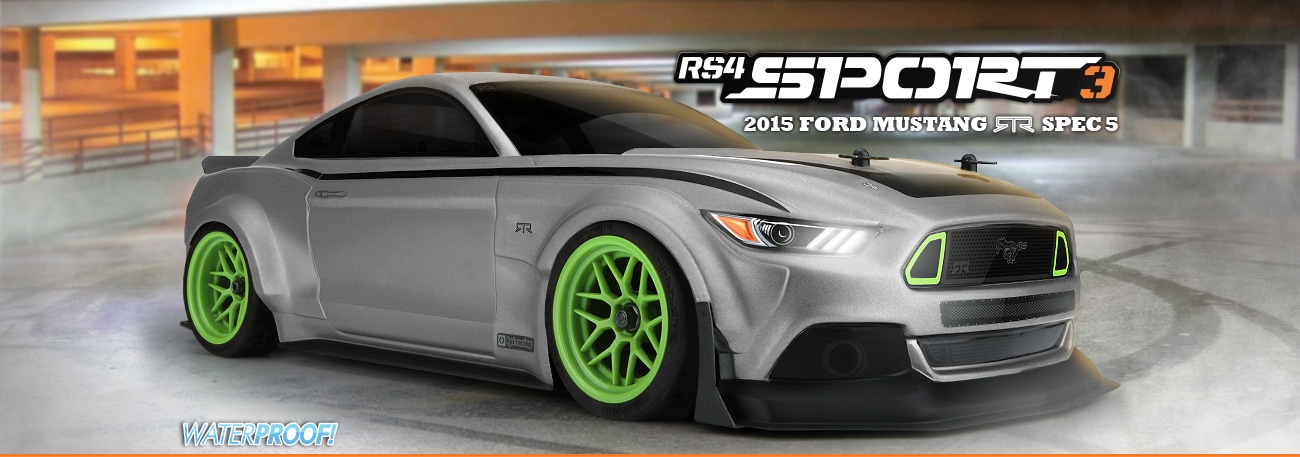

Introducing the brand new HPI Racing 2015 Ford Mustang RTR Spec 5 RS4 Sport 3!

Bringing the awesomeness of Vaughn Gittin Jr's RTR Spec 5 into your hands in 1/10th scale RC form, the latest RS4 Sport 3 kit is Ready to Rock your RC world!

The super realistic Ford Mustang RTR Spec 5 body is coupled with a set of replica HRE Tech 7 wheels for over the top scale realism.

Under the hood, this 1/10th scale Mustang is equipped with the latest HPI Racing Touring Car chassis, the RS4 Sport 3.

With full time shaft driven 4WD, a fully sealed drivetrain, waterproof 2.4 GHz electronics/radio gear, fully independent double wishbone suspension and adjustable oil filled shocks it's Ready to Rock in any condition.

To grab the attention of all RC and motorsport enthusiasts, this RS4 Sport 3 features the latest Ford Mustang styling, tuned and tweaked by drift champion Vaughn Gittin Jr. to become the awesome Ford Mustang RTR Spec 5.

The car is also fitted with replica green RTR by HRE Tech 7 wheels wrapped with great-looking street tires, so it's ready to hit the streets right out of the box!





Replica RTR Tech 7 Wheels
RTR by HRE is a collaboration resulting from 10 years of working together with RTR founder Vaughn Gittin Jr. in Formula Drift and special projects. RTR by HRE combines the technical expertise from our collective championship-winning race wheels with an uncompromised attention to detail creating the ultimate in lightweight, high-strength performance forged wheels.

This race-bred philosophy ensures enhanced braking, acceleration and handling while also reflecting your distinguished sense of style. Available ONLY for the Ford Mustang in a 20" size, they are perfectly replicated in 1/10th scale and included with every 2015 Ford Mustang RTR Spec 5 replica!

HPI Racing Spec-Grip Tires
Rounding out the package are the brand new high-performance HPI RACING SPEC-GRIP rubber tires for maximum grip and fun on the road.

Newly designed with a scale realistic side profile, multi condition tread and high traction rubber compound, the HPI RACING SPEC-GRIP tires represent the next generation of HPI on road rubber tires.

Official Replica of the Custom Ford Mustang RTR Spec 5
The Mustang RTR is the vision of World Champion drifter and Mustang mad man, Vaughn Gittin Jr. His dream was to introduce something new to the Mustang world that appeals to traditional muscle car enthusiasts and automotive enthusiasts as a whole.

The Mustang RTR takes the best of multiple automotive cultures and tastefully meshes them together into a look that anyone can immediately appreciate.

Vaughn has successfully made his dream a reality with the Mustang RTR.

This new generation brand of Mustang that comes in the form of a dealer-installed package is currently available in select Ford dealerships around the world.

One-Piece Molded Chassis
The main chassis is formed from a single piece of reinforced plastic and features the drivetrain tunnel molded right down the middle, just like a real car.

It's a step beyond any plastic tub chassis car available today.

Low Profile Layout Design
One of the ways we gave the RS4 Sport 3 the best possible handling was to make sure all the components fit as low as possible in the chassis.

This gives the car an amazingly low center of gravity for enhanced cornering capabilities.

2S LiPo Capable
The RS4 Sport 3 features a versatile electronic speed controller that can be used with modern lithium-polymer (LiPo) or nickel-metal hydride (NiMH) batteries.

Please note a LiPo adapter plug is not included, your model shop will be able to provide one.

Fits a Wide Variety of Batteries
The RS4 Sport 3 chassis can fit lithium-polymer and nickel-cadmium packs of various sizes, including the extra-long 7-cell Ni-MH packs.

Whatever your power requirements, it can hold it all!

A thick hook-and-loop strap holds the pack securely in place, and a simple battery block screws into place to allow you to adjust the weight distribution forward or backward for extra steering or acceleration.

Full-Time Four-Wheel Drive
The RS4 Sport 3 features full-time four-wheel drive to give you the most control and precision on the road or track.

All four wheels are driven by heavy duty gear differentials at the front and rear, just like a real car.

The extra traction gives you increased acceleration and cornering control for maximum confidence and fun.

Sealed Shaft Drivetrain
The drivetrain of all the RS4 Sport 3 models features the motor mounted longitudinally in the molded chassis, next to the long driveshaft that goes down the center of the car.

The entire drivetrain, including the central driveshaft and gear diffs, is completely sealed to prevent dirt, rocks and debris from damaging or binding the drivetrain.

The driveshaft, diffs and axles spin on ball bearings to maximize drivetrain efficiency.

Bottom-Access Driveshaft
The central driveshaft that connects the front and rear differentials is easily accessed from underneath the chassis.

This allows the drivetrain to be completely sealed to protect it from rocks and debris no matter where you may want to drive your car.

Easy Access Differentials
Getting to the differentials for quick adjustments is a matter of removing just 4 screws - this allows you to pop out the diff and change the grease, check the gears or just give it a general service.

4-Gear Metal Diffs
Bevel gear differentials at each end of the car transfer power from the driveshaft to the dogbones and axles that drive each wheel.

The all-metal construction allows the drivetrain to withstand powerful brushless motors for easy upgrading in the future.

Rubber-sealed ball bearings support the differentials and each diff can be tuned independently by changing the diff grease.

Double-Wishbone Fully Adjustable Suspension
The suspension of the RS4 Sport 3 uses the race-proven double-wishbone suspension design, similar to a full scale modern race car.

You'll be able to control the anti-squat and anti-dive of the front and rear arms using the standard pivot blocks, and the option parts allow you to adjust the sweep and toe angles.

You'll also be able to easily change the roll center front and rear with the racing-style vertical ballstud mounting on both the inner and outer camber link mounts.

Multiple shock mounting positions provide a full range of shock suspension angle adjustment to suit different road conditions.

Multiple Shock Positions

Oil-Filled Threaded Shocks
The RS4 Sport 3 is fitted with a set composite coilover-style oil-filled shocks, just like what you'd see on a real race car.

The fully adjustable shocks are fully tunable to provide the optimum chassis performance on a wide variety of road surfaces.

The ride height is quickly adjustable by using the threaded shock collars.

Further tuning adjustments are also possible by changing the springs and shock oil weight.

Tough Front End Suspension
The RS4 Sport front end uses the strong C-hub style suspension seen on the latest RC touring cars, with a vertical ball stud camber mount that lets you change the front end roll center - which is a critical racing adjustment that allows the RS4 Sport 3 to be a step above other sport-level RC touring cars.

The suspension arm also features multiple shock mounting holes for easy shock angle adjustment.

Tunable Rear Suspension
The rear hub is fitted with a vertical ball stud style adjustment that allows easy adjustment of the rear roll center.

Moving the ball stud up or down with the optional spacers changes the traction characteristics of the rear end as the car goes through the turns.

The suspension arm also features 3 different shock mounting holes for easy shock angle adjustment.

Double Bellcrank Steering
The performance tested adjustable double bell crank system provides optimum steering precision at all speeds.

A metal drag link plate connects the cranks for extra durability, the additional drag link mounting positions also allows for Ackermann angle adjustments.



Rugged Spring-Loaded Servo Saver

The RS4 Sport 3 includes an adjustable multipiece cam-style servo saver, which protects the servo from crash damage.

In the event of a crash or collision, the front wheels usually take a big portion of the blow and transmits the impact directly to the steering servo.

The strong spring-loaded cam action of the servo saver is designed to absorb this force and protect the servo gears from the impact!



Aluminum Motor Mount
The cast aluminum cam-style motor mount holds the motor in place for a secure pinion/spur connection.

Two screws hold the cam firmly in position on the mount, and cooling fins on the lateral support aid heat dissipation to keep the motor running as efficiently as possible.

Rear End Chassis Diffuser
The built in rear end chassis diffuser element smooths out the air flow underneath the chassis for maximum aero efficiency.

Metal-Shielded Ball Bearings
The RS4 Sport 3 is fully fitted with a set of metal-shielded ball bearings for maximum efficiency.

The metal shields keep the dust away from the internals while the smooth precision bearings provides for optimum power delivery from the power source out into the driveline.

Rugged Front Bumper
To protect the front suspension, chassis and body from impacts big and small, an extra thick foam bumper is securely fastened to the front of the RS4 Sport 3.

Customize Your Look
A huge variety of option bodies, wheels and tires from HPI lets you fully customize the style of your RS4 Sport 3 to suit your style.

Adjustable Height Body Mounts

The adjustable height body mounts let you fit any 1/10th scale touring car body from HPI Racing on to the RS4 Sport 3 chassis. All you need to do is adjust the front and rear body mounts to allow the wheels and chassis elements to fit properly underneath the body. Body pins hold the mounts in place, and the multiple mounting hole positions allow you to fine-tune the exact body fitment.

Body Choices
You can fit any 1/10th scale touring car body from HPI Racing onto the RS4 Sport 3, from hot hatches to supercars, pick-up trucks to supertouring racers.

All you need to do is adjust the body mounts front and rear to allow the wheels to fit underneath the body properly.

A simple system using body pins hold the mounts in place, and you can fine-tune the fit to get the exact ride height you want.

Comprehensive Instruction Manual
All HPI Racing kits include a detailed multi-language instruction manual.

Exploded diagrams and extensive information about your RS4 Sport 3 ensures that you have the knowhow when it comes to maintaining and upgrading your kit.

You can also download a digital version of the manual to your personal electronic device and keep it with you for easy reference on the go.

MYhpi: The Ultimate Resource for Your RS4 Sport 3

Once you've got your RS4 Sport 3, add it to your MYhpi garage to get direct information about what will make your car faster, more adjustable and easier to tune.

Add your entire HPI collection to your MYhpi garage so you can directly access manuals, videos, tips and help for each of your HPI cars!

#115126 RS4 Sport 3 RTR Mustang RTR Spec 5

1/10th Scale Pre-Assembled 4WD Touring Car with 2.4GHz Radio System and Painted Mustang RTR Spec 5 Body

Specifications:
Length: 431mm (17")
Height: 127mm (5")
Width: 200mm (7.9")
Wheelbase: 254mm (10")

Includes:
4 AA batteries
7.2v 2000 mAh NiMH battery with standard plug Wall battery charger
