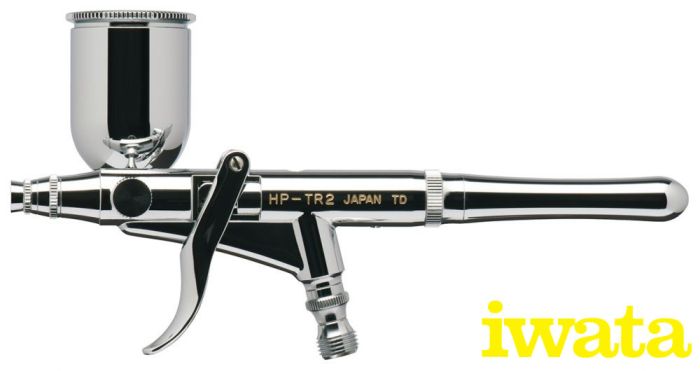

Iwata Revolution TR2 Airbrush # RV-TR2

Iwata Revolution Series airbrushes deliver soft, effortless coverage and quality atomization at low air pressures making them a great choice for general purpose spraying.

Exclusive to Revolution Series, the TR2 Side-Feed Dual-Action Trigger Airbrush features a unique, comfort handle and the innovative dual-action pistol trigger design offers simple, ergonomic operation.

The Iwata Revolution TR2 has a 0.50oz / 15ml fluid cup with lid that is ideal for colour mixing.

Iwata's spring-steel needle resists breakage and the PTFE needle packings are solvent resistant for longevity.

Included with this airbrush is the Iwata Nozzle Spanner that is used to remove the nozzle for cleaning, or you may purchase our Iwata Nozzle Wrench to easily remove or tighten your airbrush nozzle without fear of damaging it.

Also supplied is Iwata Lube, which is used to lubricate the head needle and main lever mechanism.

We also include an Iwata Pistol-grip Filter that collects and evacuates moisture build-up, helping to ensure that your Revolution airbrush receives clean, dry air.

Available to fit the Iwata Revolution TR2 is the K200 Custom Grip Handle.

This will add even more comfort whilst holding your trigger airbrush.

Airbrush Specifications:
Spray Performance Category: Effortless coverage and quality atomisation at low air pressures
Series: Revolution
Spray Scale: Fine to Wide - Fine line to 1 1/2" (0.5mm to 38mm)
Optimal Working Pressure: 20 - 30 psi (0.14 - 0.21 Mpa)Will atomise at lower and higher pressures depending on your application, paint mix and compressor compatibility.
Head System: R5 - Needle, Needle Cap, Nozzle, Nozzle Cap
Nozzle Type: Screw-On
Feed Style: Side-feed
Paint Capacity: 0.50oz (15.0ml) – additional Side-feed Bottles and Cups are also available to fit this airbrush
Action: Dual-action
Mix Type: Internal-mix
Handle Type: Comfort
Warranty: 10 Years
Net Weight (lbs): 0.27
Net Weight (kg): 0.12
Assembled Dimensions (in): 0.75 x 6.06 x 1.85
Assembled Dimensions (mm): 19 x 154 x 47

Excellent for these applications:
Custom Automotive
Art & Graphics
Mural Painting
Model Painting
Textiles
Hobby and Craft
Body Art
Cosmetics

You will also need:
Air source
Air hose
