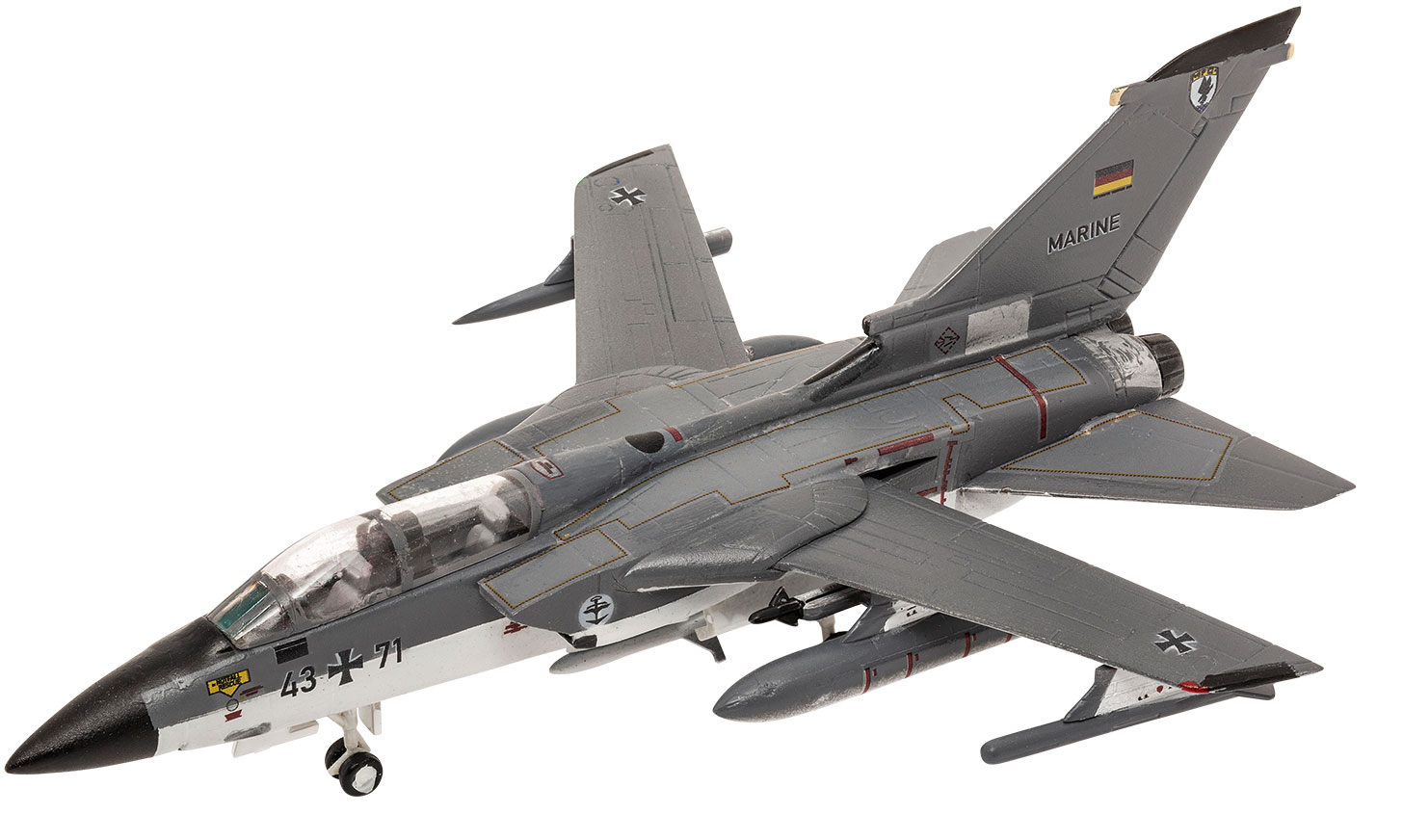

Revell 1/144 Panavia Tornado IDS/GR.1 # 03783

The Panavia Tornado was a multirole combat aircraft developed through a collaborative effort between the United Kingdom, Germany, and Italy under the Panavia Aircraft GmbH consortium.

The Tornado IDS (Interdictor/Strike) and its British variant, the GR.1, were specialized for deep penetration strikes, ground attack, and close air support.

Design and Structure:
Airframe: The Tornado featured a twin-engine, variable-sweep wing design, which allowed it to operate effectively at high speeds and low altitudes. The variable geometry wings could sweep back to reduce drag for high-speed missions and extend forward for improved control during low-speed operations.
Cockpit: The Tornado IDS/GR.1 had a two-seat cockpit, with the pilot in the front and the weapons systems officer (WSO) in the rear. The cockpit was equipped with a state-of-the-art avionics suite, including advanced radar, navigation, and targeting systems.
Wings: The swept-wing design allowed for better maneuverability at different speeds. The wings could sweep between 25° and 67° depending on mission requirements.

Engine and Performance:
Engines: Powered by two Turbo-Union RB199-34R Mk 103 afterburning turbofan engines, jointly developed by Rolls-Royce, MTU, and Fiat.
Thrust: Each engine produced approximately 16,000 lbf (71 kN) of thrust with afterburners.
Top Speed: Mach 2.2 (1,452 mph or 2,335 km/h) at high altitude.
Range: Approximately 870 miles (1,400 km) on internal fuel, extendable with external drop tanks and aerial refueling.
Combat Radius: Around 700 miles (1,127 km) for deep-strike missions.

Armament and Payload:
Internal Cannon: 1 × 27mm Mauser BK-27 revolver cannon with 180 rounds.
Air-to-Ground Weapons:

Various types of free-fall bombs, laser-guided bombs (LGBs), and cluster munitions.
Capable of deploying ALARM (Air-Launched Anti-Radiation Missiles) and Brimstone missiles for precision strikes.
Could carry JP233 runway denial munitions for destroying enemy airfields.
Air-to-Air Missiles: AIM-9 Sidewinder or AIM-132 ASRAAM for self-defense.
Anti-Ship Missiles: Capability to carry and deploy Sea Eagle missiles.

Operational History:
Role: The Tornado IDS/GR.1 excelled in low-level strike missions, ground attack, and anti-radar operations. It was designed to penetrate heavily defended airspace at low altitudes, striking high-value targets.
First Flight: August 14, 1974, with operational service beginning in 1979.
Gulf War (1991): The GR.1 saw extensive action during Operation Desert Storm, where it was used in deep strike missions, employing JP233 munitions to disable Iraqi airfields and infrastructure.
Bosnia and Kosovo: The Tornado GR.1 participated in NATO operations, delivering precision strikes against enemy positions.

Tornado GR.1 (RAF Variant):
The GR.1 was the Royal Air Force’s (RAF) primary version of the Tornado IDS. It was tailored for low-altitude, high-speed penetration of enemy defenses and could perform a wide range of mission profiles, including:

SEAD (Suppression of Enemy Air Defenses): Equipped with ALARM missiles to neutralize radar installations.
Interdiction: Designed for deep penetration of enemy territory to destroy critical infrastructure.

Key Features and Technologies:
TFR (Terrain-Following Radar): Enabled the Tornado to fly at extremely low altitudes while maintaining automatic terrain avoidance, making it harder for enemy radar systems to detect and engage.
ECM Suite: Advanced Electronic Countermeasures (ECM) system to jam enemy radar and communication systems.
Navigation and Targeting: Equipped with a forward-looking infrared (FLIR) system and laser designators for precision targeting.

Upgrades and Evolution:
GR.1A: Reconnaissance variant fitted with specialized sensors and cameras.
GR.1B: Maritime strike variant capable of carrying Sea Eagle anti-ship missiles.
GR.4/4A Upgrade: The GR.1 was later upgraded to the GR.4 standard in the 1990s, incorporating enhanced avionics, improved targeting systems, and compatibility with newer weapons.

Legacy:
The Panavia Tornado IDS/GR.1 served as a cornerstone of NATO’s airpower for decades, offering unparalleled versatility and strike capabilities. Its ability to penetrate enemy defenses at low altitudes made it a vital asset in modern warfare until its gradual retirement in the 2010s, replaced by more advanced platforms such as the Eurofighter Typhoon.
