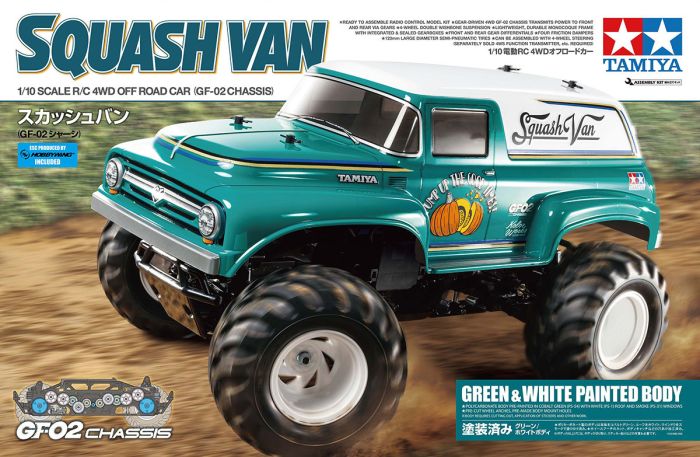

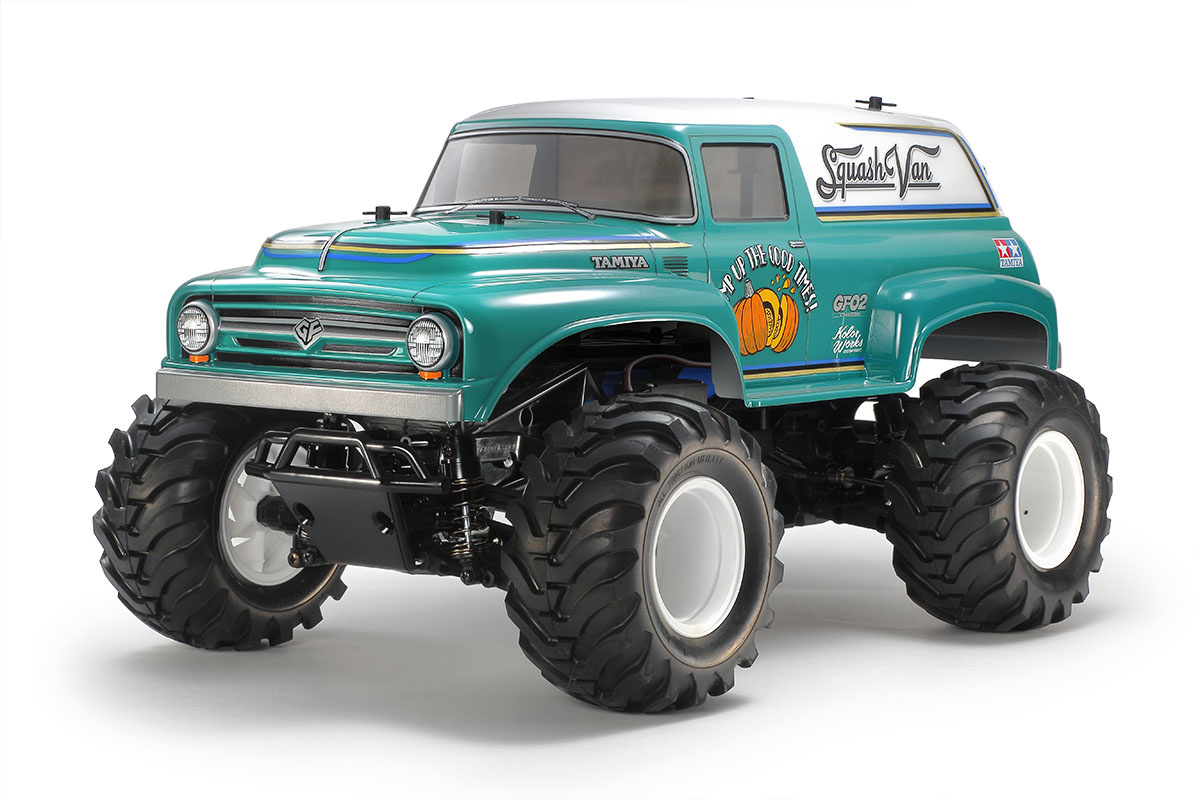

Tamiya 1/10 Squash Van (Green & White Painted Body) # 47497
Tamiya welcomes this limited edition version of recently-announced Item 58725 1/10 R/C Squash Van with body pre-painted in Cobalt Green (PS-54) with White (PS-1) roof and Smoke (PS-31) windows, pre-cut wheel arches and pre-made body mount holes, which is great for not only beginners but also R/C veterans.
While the GF-01 chassis features a comical design, the GF[1]02 chassis employs a more realistic wheelbase and a frame with ladder / pipe motifs.
This R/C assembly kit is inspired by 1950s American panel vans, and offers an excellent drive even on grass or uneven surfaces.
About the Model
This is a 1/10 scale R/C model assembly kit. Length: 454mm, width: 280mm, height: 238mm. Wheelbase: 267mm.
123mm large-diameter lug pattern tires allow powerful performance and superior handling feel.
Stickers feature designs such as squash illustrations, product logo, and triple pin stripes in gold, black and blue.
ESC & Type 540 Motor Included
Prepainted Body
About the GF-02 chassis
The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears.
The long wheelbase and wide tread setup ensures stable off-road performance.
The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out.
Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road.
The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods
Wheelbase
Same length as the long CC-02 wheelbase chassis same body mount positions as the long CC-02 wheelbase chassis
Tread
F : 223mm / R: 221mm
Tyres
As Blackfoot [58633] 122.8mm diameter
Gear ratio
18T (18.03:1), 20T (16.23:1), 17T (19.09:1)
20T and 17T pinion gears are sold separately
Motor Guard included
Lower servo mount to enhance attachment durability and lower more central motor position for improved balance and weight distribution.
SKU | TAM47497 |
---|---|
Manufacturer | Tamiya |
Scale | 1/10 |
Short Description | Tamiya 1/10 Squash Van (Green & White Painted Body) # 47497 |
