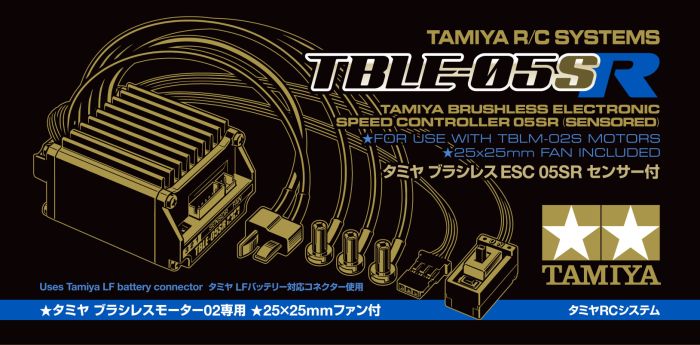

Tamiya TBLE-05SR ESC for Tamiya Brushless # 45071

SKU
TAM45071
Available Soon
Type:
Radio Control
Special Price £89.99 was £99.99
All Prices include VAT - Live stock levels & we offer eRewards
To collect in store, choose click & collect during checkout

Low Prices & next day delivery, you really need to take a look.

This ESC is designed only for use with Tamiya Brushless Motors (Sensored).

Please kindly note that we plan to discontinue Item 45070 Tamiya Brushless Electronic Speed Controller 04SR (Sensored).

About the Item

- Dedicated brushless motor connector enables more efficient power supply
- Motor connectors can be directly connected to motor
- The FET (Field Effect Transistor) layout features parallelization to reinforce high current resistance. The maximum RPM is the same level as the TBLE-04SR
- The black-anodized aluminium case works as heat sink to ensure improved heat dissipation, and 25mm square cooling fan can be attached (*the TBLE-04SR had plastic case)
- Features a receiver switch with screw-attached switch case which protects cables and reinforces case rigidity
- The TBLE-05SR has a set button on the receiver switch for easier setup changes while the TBLE-04SR had it on the ESC
- Settings such as battery cut-off, reverse, brake, soft start and neutral brake can be changed by the set button and can be checked by three LED lights and sounds
- Features overheat and overload protection functions to help ensure that your equipment avoids damage
- Compatible with Item 54612 Tamiya Brushless Motor 02 (Sensored) 15.5T
- Includes 270mm sensor cable (the same cable as the one included in Item 45070)
- Maximum continuous current: 90A
- Input voltage: 6.6V - 7.2V
- Weight: 76g (including cables)
- Dimensions (approximate): 42.5 x 33.5 x 24.5mm (with fan: 42.5 x 33.5 x 33.5mm)

More Information
SKU TAM45071
Manufacturer Tamiya
Short Description Tamiya TBLE-05SR ESC for Tamiya Brushless # 45071
