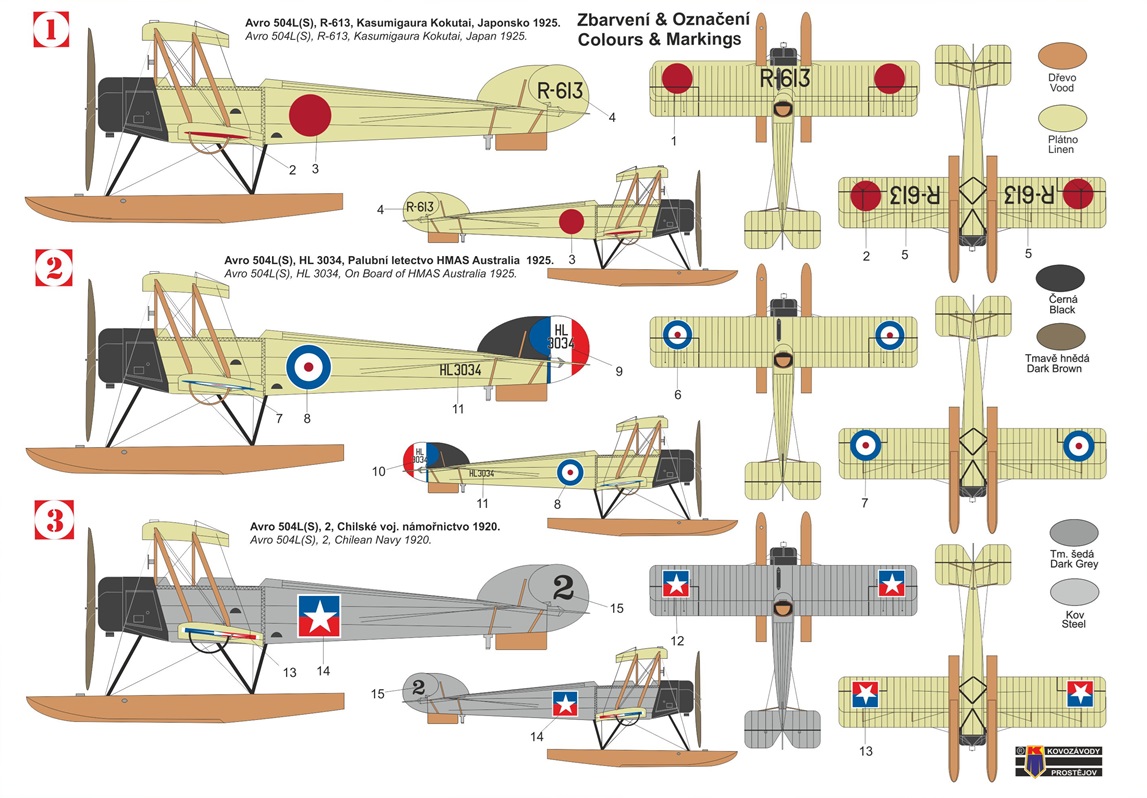

Kovozavody Prostejov 1/72 Avro 504L float planes Australia, Japan and Chile # 72464

The Avro 504L was a floatplane variant of the widely successful Avro 504 series, adapted for operations on water.

This version was specifically designed to meet the needs of military and civilian aviation in regions where maritime operations were essential, such as Australia, Japan, and Chile.

The Avro 504L retained the fundamental design of the 504 series but was equipped with floats instead of traditional landing gear, allowing it to take off and land on water.

Design and Modifications:

The Avro 504L was based on the Avro 504K, but with significant modifications to suit its role as a floatplane.

The primary change was the addition of large, wooden floats attached to the aircraft's undercarriage, replacing the wheeled landing gear.

These floats were designed to provide stability and buoyancy, enabling the aircraft to operate from lakes, rivers, and coastal waters.

In some configurations, an additional small float was added to the tail to further stabilize the aircraft during water operations.

Aside from the floats, the 504L maintained the biplane structure, with two equal-span wings braced with wires, and an open cockpit layout.

The engine options were similar to those of the 504K, typically featuring rotary engines like the Le Rhône or Gnome, although the specific engine could vary depending on the operator's preferences.

Operational History in Australia:

In Australia, the Avro 504L was used by the Royal Australian Air Force (RAAF) for training and coastal patrol duties.

Given Australia's extensive coastline and the importance of maritime operations, the floatplane variant was well-suited for operations in remote and coastal regions where conventional airfields were unavailable.

The Avro 504L helped train pilots in the early days of Australian military aviation and also supported civil aviation activities.

Operational History in Japan:

Japan, which had a growing interest in both military and civil aviation during the interwar period, also operated the Avro 504L.

Japanese naval and military forces used the floatplane for pilot training, reconnaissance, and maritime patrols.

The aircraft was part of Japan's early efforts to develop a capable naval aviation arm, contributing to the skills and tactics that would later be employed in World War II.

Operational History in Chile:

In Chile, the Avro 504L was used by the Chilean Navy and Air Force, reflecting the country's need for versatile aircraft capable of operating in its diverse geographical regions, including its extensive coastline.

The floatplane was employed for training, coastal reconnaissance, and communication duties, helping to establish the foundations of Chilean naval aviation.

Legacy:

The Avro 504L floatplane variant was a testament to the adaptability of the Avro 504 design, demonstrating its versatility in various operational environments.

In Australia, Japan, and Chile, the Avro 504L contributed significantly to the development of early aviation capabilities, particularly in the context of maritime operations.

Although the aircraft was eventually retired and replaced by more advanced designs, the Avro 504L remains an important part of aviation history in these countries, remembered for its reliability and its role in pioneering seaplane operations.
